1.16 tools linear atc cnc router can move with the gantry, change tools freedomly, fast tool change speed.
2. High efficiency, 70-90 sheets wood panel a day, The board utilization rate up to 98%, which greatly reduces the cost of raw materials.
Features:
1.The whole machine body is made from 8MM steel seamless welding tempering aging treatment, rigid, no deformation.

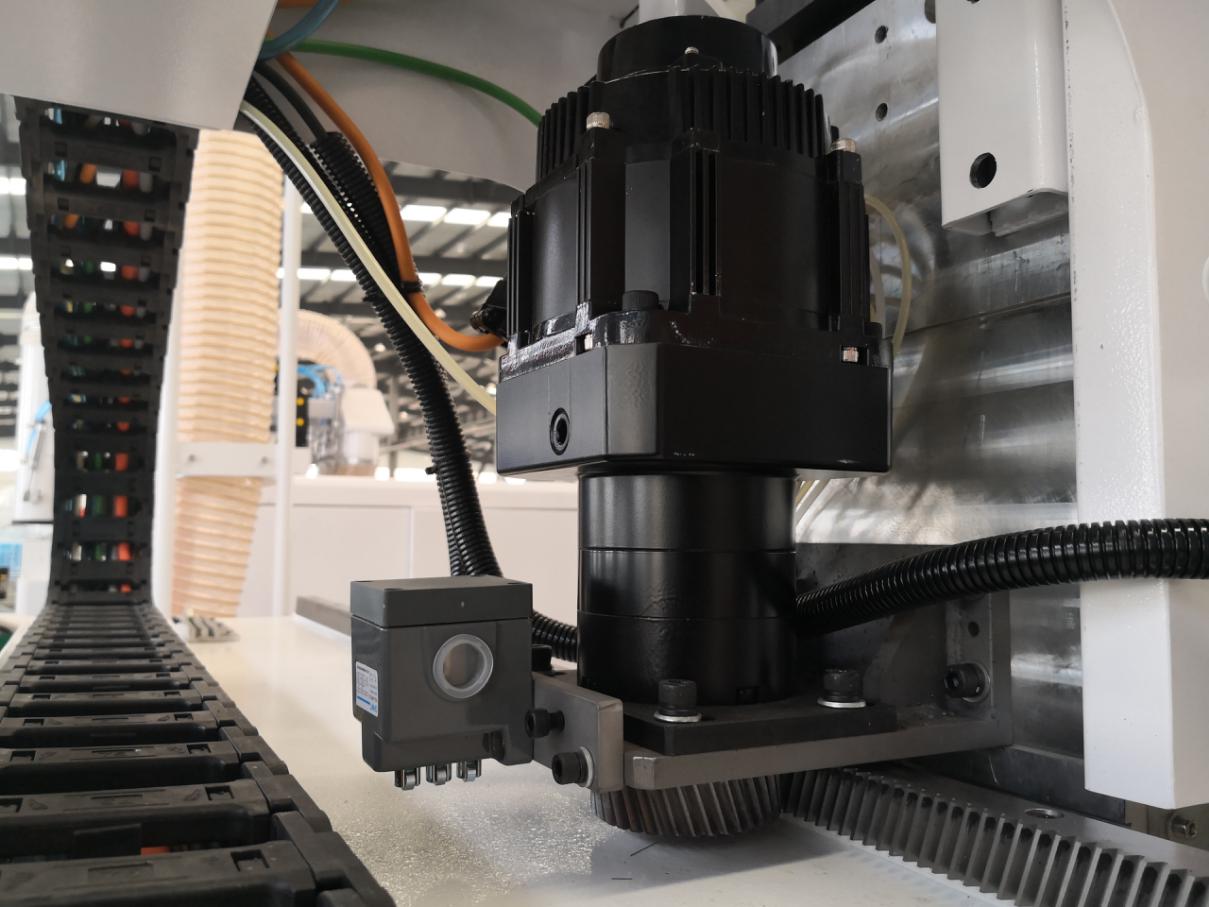

2.Servo motor, high precision and high speed.
3. Taiwan 30 square rail guide, smooth operation, more stable high precision, long life.

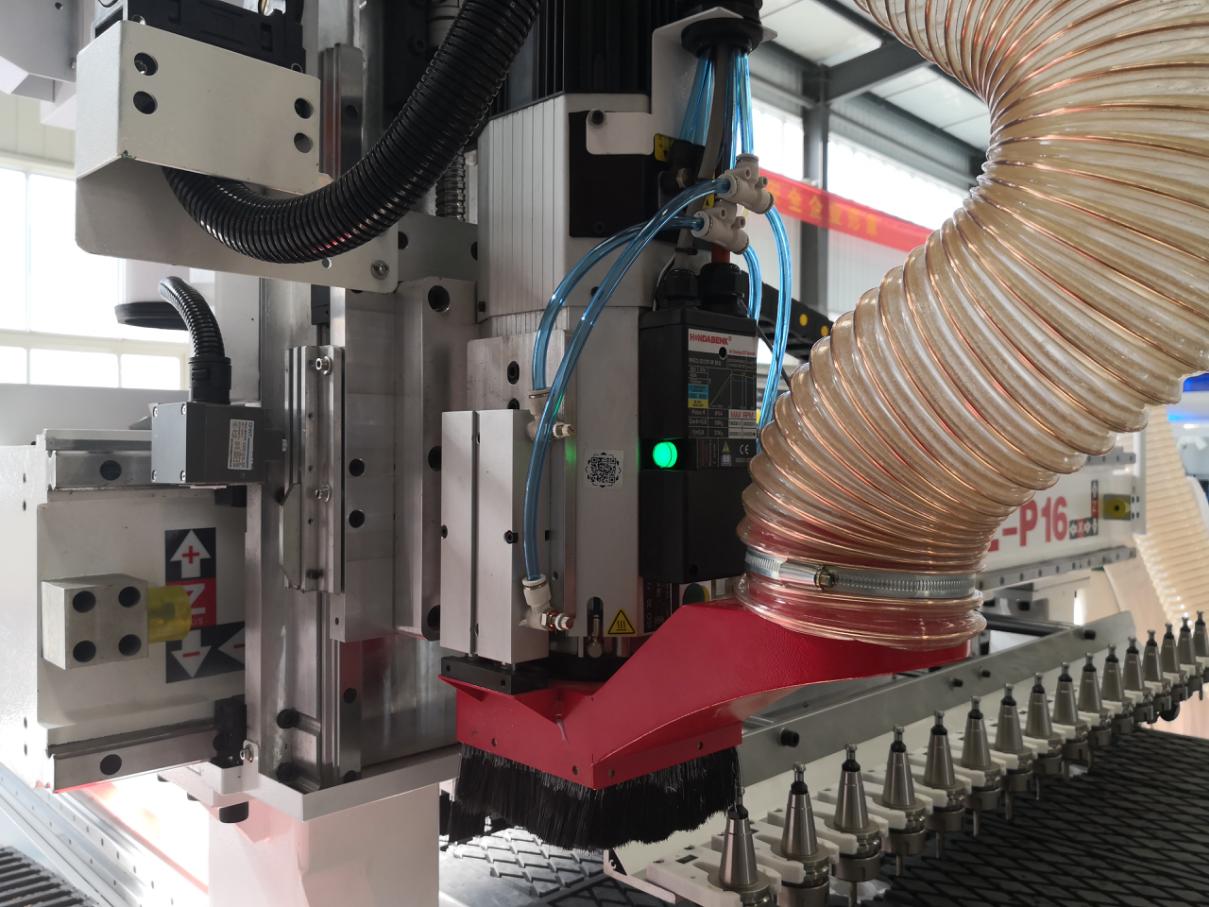

4. 9KW air cooling ATC spindle, long power life, speed up to 18000 r / min, carved smooth surface.

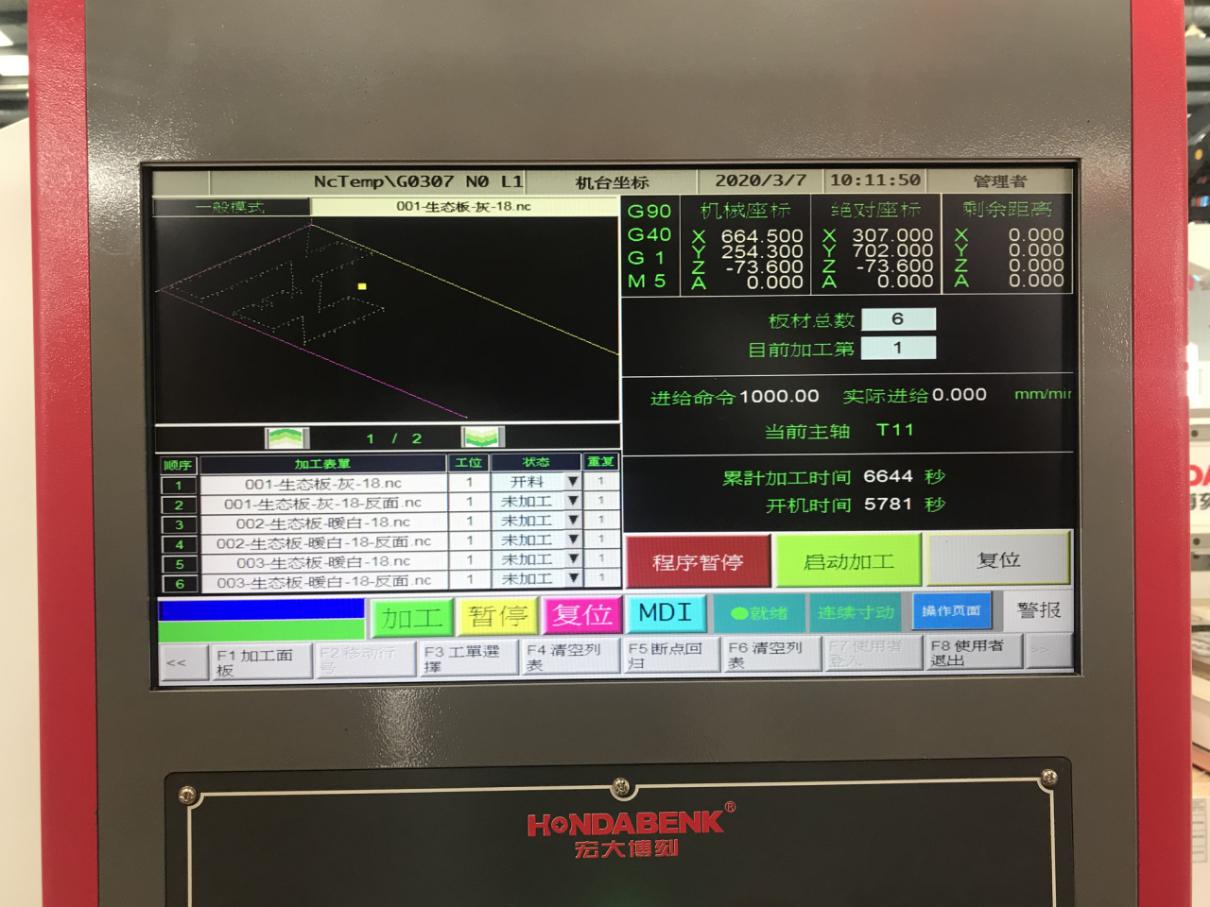

5. Large equipped with a separate cabinet, touch screen operation, simple and convenient, easy to learn.

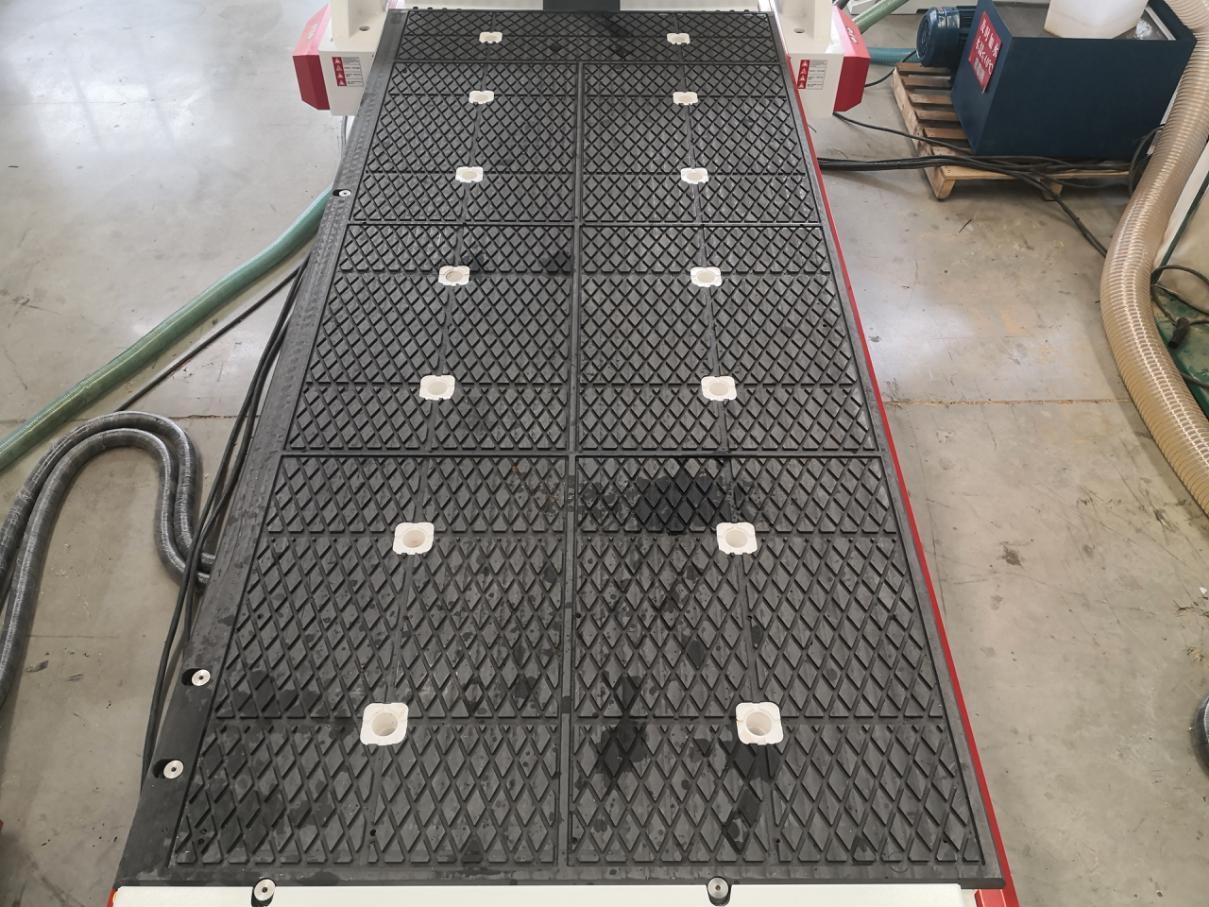

6. With double layer vacuum table, cut make cross on vacuum table, better sucking effect. vacuum system can be sucked in the processing process of wood chips and debris, to keep the table clean and indirect maintenance of the equipment.

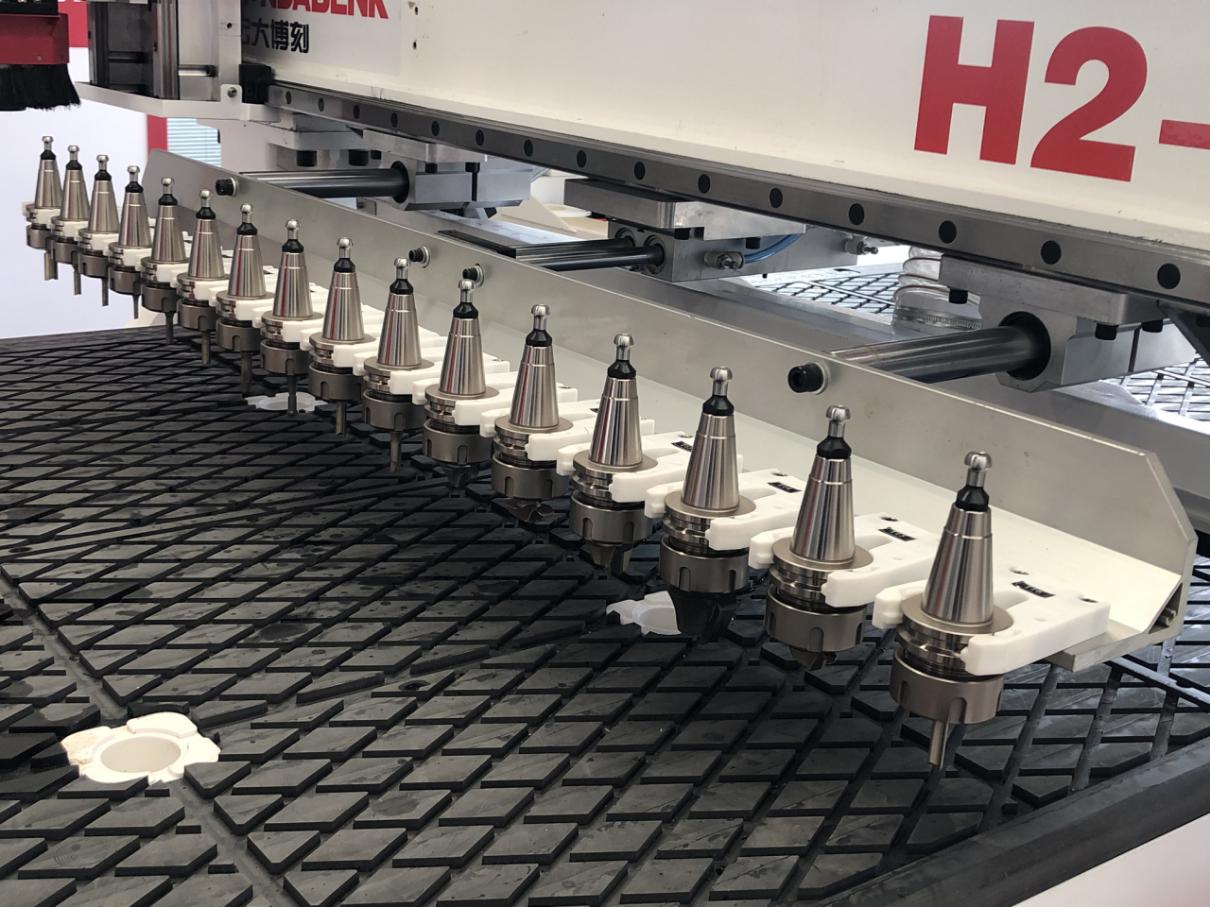

7.12 linear ATC tools, servo driving
8. used for wood cutting, engraving, milling, hole cutting, applied in panel furniture, clothed cabinet, and advanced cabinet door making
Application:
Suitable for carpentry, wooden doors, furniture, cabinets, molds, panel furniture etc.
Description & Specifications of Heavy Duty ATC CNC Router: | |
Model | MRH2-16 |
X Working Area | 1300mm |
Y Working Area | 2500mm |
Z Working Area | 300mm |
Machine table | Double layer vacuum table |
Traveling Positioning Accuracy | ±0.05mm |
Repositioning Positioning Accuracy | ±0.05mm |
X,Y ,Z Structure | XY Taiwan 2.0M gear wheel, Z Taiwan ball screw. All Axis use Square Guide |
ATC TOOLS | 12 TOOLS in line |
Max. Rapid Travel Rate | 50000mm/min |
Max. Working Speed | 25000mm/min |
Spindle | 9KW ATC spindle |
Spindle Speed | 0-18000rpm |
Drive Motor | Chinese servo |
Command | G-code*.u00*.mmg*.plt |
Working voltage | 3PH AC380V/50Hz |
Control System | Taiwan LNC Control system |
Guide rail | Taiwan 30 square rail |
Control cabinet | screen touch cabinet |
Lubricating system | Automatic lubricating system |
Auxiliary device | Pop-up pins- to fix material in right place , tool sensor to calibrating same Z axis height of each tool, 5.5kw dust collector , 7.5kw vacuum pump |
