The simultaneous processing of side holes and vertical holes with double drilling bags greatly improves the efficiency,
Features:
Artifacts six-sides drilling：Six-sides drilling operation completed in one time, no need to turn the plate to reduce
the secondary positioning of the turning plate, improve drilling progress
Superior design：The design of air floating platform can avoid the scratch of plates and reduce the labor intensity.
Double clamps can automatically adjust the clamping position according to the plate length, which can realize diversified processing.
according to the plate length, which can realize diversified processing.
Front and back slotting：It can process both front and back grooves and holes at the same time to improve efficiency
Superior system：Open system design, which can connect diversified data formats and connect flexibly
Double head drilling and milling：The simultaneous processing of side holes and vertical holes with double
drilling bags greatly improves the efficiency, and the precise algorithm optimizes the path and simplifies the action
Concise operation：After the plate is put in, the laser automatically detects the size of the plate. The same
plate can be stacked up and down and processed at the same time. The system can edit the plate processing path
for direct processing to simplify the supplement process.

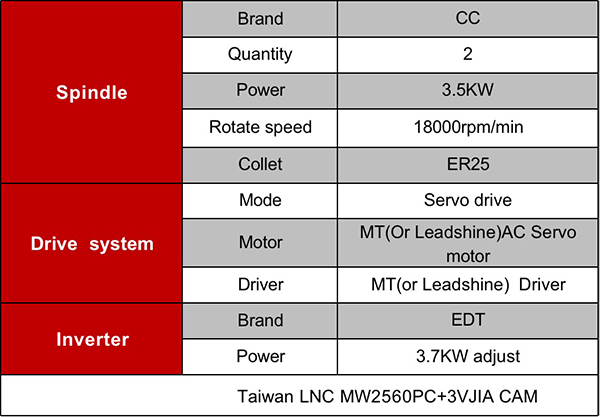

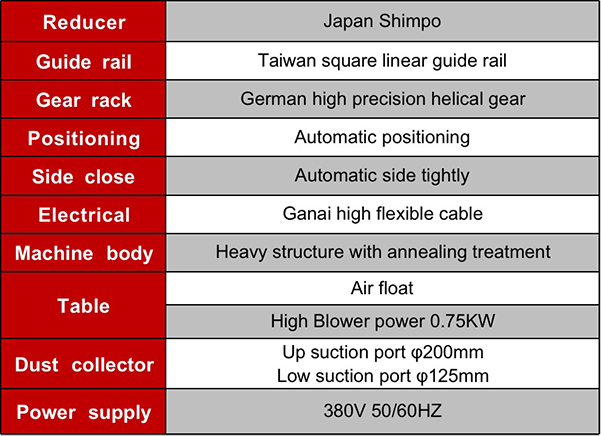

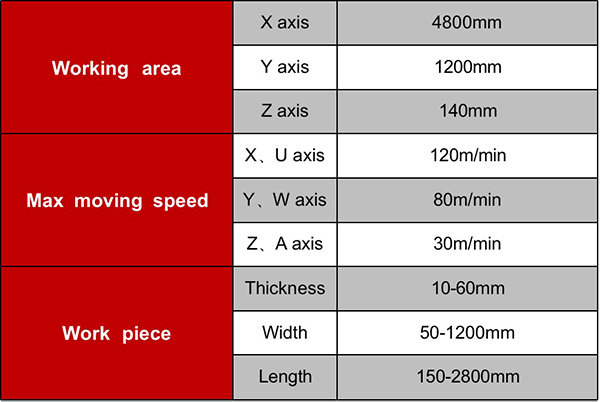

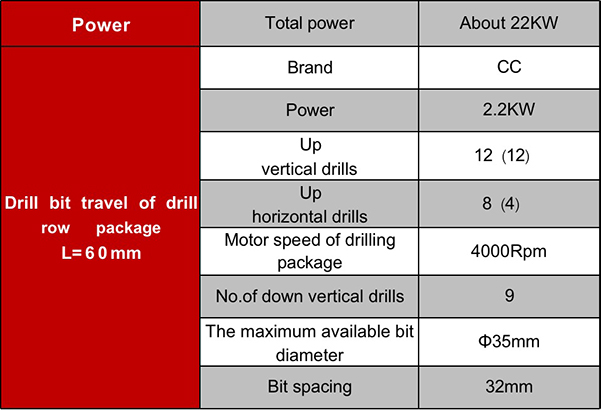

Specification：
